Alcons Introduces The CRS12/9090 - Large-Format Reference Surround Loudspeaker

June 24, 2022

• News
• Solutions
• Technology
• About Alcons
• Contact

Home » CRS12/9090

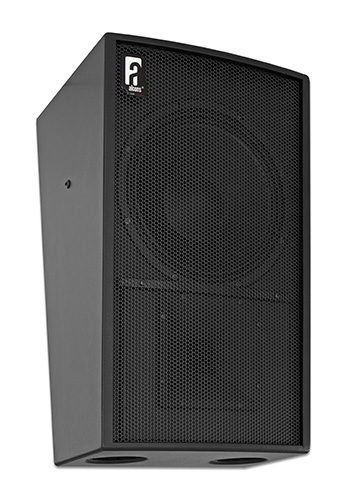

CRS12/9090 - large-format reference surround

• Reference-quality wide dispersion immersive surround sound system
• Unique voicing match with Alcons pro-ribbon loaded screen systems
• 1:1 non-compressed sound reproduction, with up to 90% less distortion
• RBN401 pro-ribbon HF driver with exceptional intelligibility and dynamic output
• SIS™ pre-wired for very high damping and further reduced distortion (with ALC)
• Patented “Real-90” horizontal and patent-pending vertical dispersion

The CRS12/9090 is a 2-way passive-filtered full range loudspeaker, designed to meet all requirements of current and future immersive surround sound formats.

Featuring the patented Alcons pro-ribbon driver technology, the CRS12 combines an exceptional clarity and intelligibility with an unusually high dynamic range, offering the most realistic sound reproduction possible.

The CRS12/9090 system consists of the RBN401 pro-ribbon driver for HF and a vented 12” mid-bass for LF reproduction. The CRS12 HF section has an 800W peak power input, enabling a 1:16 dynamic range with up to 90% less distortion from 1kHz. to beyond 20kHz.

The patented (90-degrees) horizontal and patent-pending (90-degrees) vertical dispersion offers a very wide and consistent coverage up to the highest frequencies; Crucial for the imaging in height channels of immersive systems.

Due to the “compression-less” principle of the pro-ribbon transducer technology, the system has a fully linear response, with the same tonal balance at all SPL’s for an intuitive 1:1 performance.

By utilizing identical MHF components as featured in Alcons’ screen systems, a perfect voicing matching between screen- and surround system is realized, resulting in an exceptionally wide and uniform sound stage throughout the entire listening area.

The 10-degree slanted baffle together with the upside-down speaker arrangement and the enclosure design provides for low profile wall or ceiling mounting.

For full system performance, the CRS12 needs to be driven by an ALC controller-amplifier, delivering maximum sound quality with increased headroom and utmost operation reliability. The CRS12 is available in 8 ohms and 4 ohms version, for maximum amplifier efficiency in individually-amplified immersive surround systems.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the CRS12 and ALC, significantly increasing response accuracy, regardless of cable length and system impedance, with tight and accurate mid and bass response as result.

Typical applications include (height layer) immersive surround sound systems for performing arts theaters, screening rooms, post-production facilities and dubbing stages, premium Home Cinemas and quality-conscious PLF cinemas.

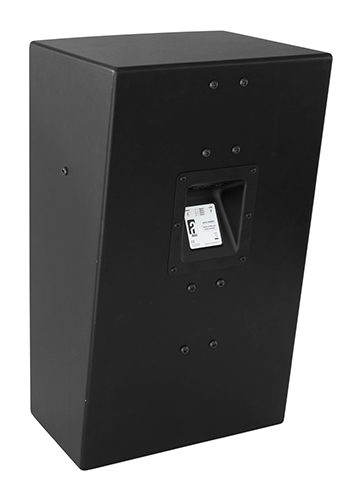

The CRS12 is prepared for a universal bracket, with pattern: 4x M8 – 2”x 4.25” (51x108mm).
